وصف المنتج
| General Specifications |
Sound system: 11.1.4 channel
Power supply: 100 - 240V AC, ~ 50/60Hz
Networked standby power: < 2.0W
Operating temperature: 0°C - 45°C
|
| Audio Specifications |
Total speaker power output (Max @THD 1%): 1170W
Soundbar output power (Max @THD 1%): 650W
Surround speaker output power (Max @THD 1%): 2x 110W
Subwoofer output power (Max. @THD 1%): 300 W
Soundbar transducer: 6x (46x90)mm racetrack drivers, 5x 0.75" (20mm) tweeters, 4x 2.75" (70mm) up-firing full-range drivers
Surround speaker transducer: (46x90)mm racetrack driver, 0.75" (20mm) tweeter, 2.75" (70mm) up-firing full-range driver, 2x (48x69)mm rounded rectangle Passive Radiators
Subwoofer transducer: 10” (260mm)
Frequency response: 33Hz - 20kHz (-6dB)
Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
|
| Dimensions |
Total soundbar dimensions (W x H x D): 1376 x 60 x 139 mm / 54.2" x 2.4" x 5.5"
Main soundbar dimensions (W x H x D): 1000 x 60 x 139 mm / 39.4" x 2.4" x 5.5"
Detachable surround speaker dimensions (each) (W x H x D): 202 x 60 x 139 mm / 8" x 2.4" x 5.5"
Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm / 12" x 17.3" x 12"
Soundbar weight: 4.3kg / 9.5 lbs
Detachable surround speaker weight (each): 1.25 kg / 2.75 lbs
Subwoofer weight: 10 kg / 22 lbs
Packaging dimensions (W x H x D): 381 x 1107 x 477 mm/ 15" x 43.6" x 18.8""
Packaging Weight: 21.45 kg / 47.2 lbs
|
| Control and Connection Specifications |
USB port: Type A
USB rating: 5V DC, 0.5A
Supporting file format: MP3
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate: 16 - 48 kHz
MP3 bitrate: 80 - 320 kpbs
Bluetooth version: Main bar - 5.0, Detachable surround speaker - 5.2
Bluetooth profile: Main bar - A2DP 1.2 and AVRCP 1.5, Detachable surround speaker - A2DP 1.3 and AVRCP 1.6
Bluetooth transmitter: frequency range2400MHz – 2483.5MHz
Bluetooth transmitter power: <15dBm (EIRP)
Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
2.4G Wi-Fi transmitter power: < 20dBm (EIRP)
5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
2.4G wireless frequency range: 2406 - 2474MHz
2.4G wireless power:＜10dBm (EIRP）
|
| Battery |
Lithium battery: 3.635V, 6600 mAh
Detachable surround speaker playtime: up to 12 Hours (may vary according to content type and volume level)
|
| What's in the box |
|
| Warranty | Official Warranty |
Description
True Dolby Atmos®, DTS:X, and MultiBeam™ Surround Sound
Immerse yourself in theater-quality 3D sound. With four up-firing drivers in the main bar and two more in the detachable speakers, the JBL Bar 1300 delivers true Dolby Atmos® and DTS:X together with MultiBeam™ for an enhanced 3D surround sound experience.

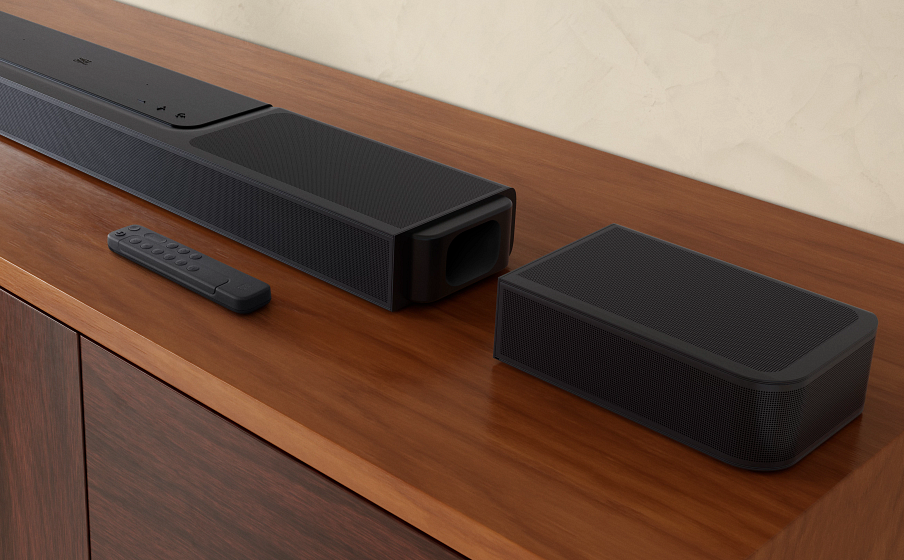

Real surround sound with detachable surround speakers
Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.
Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.
