Description

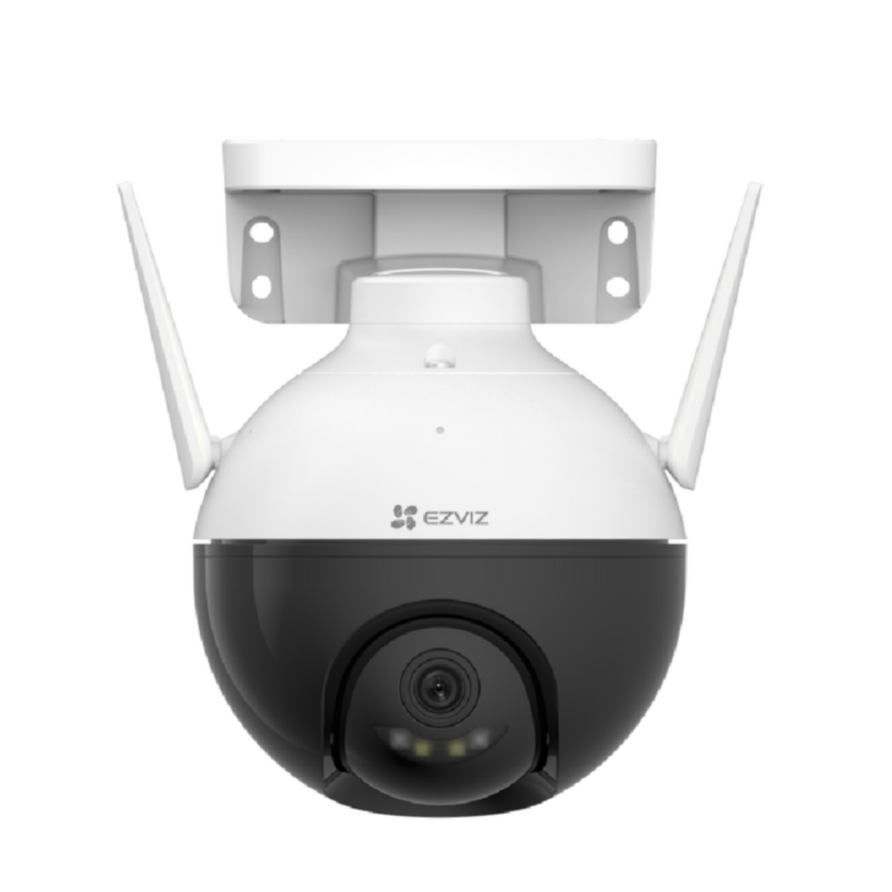

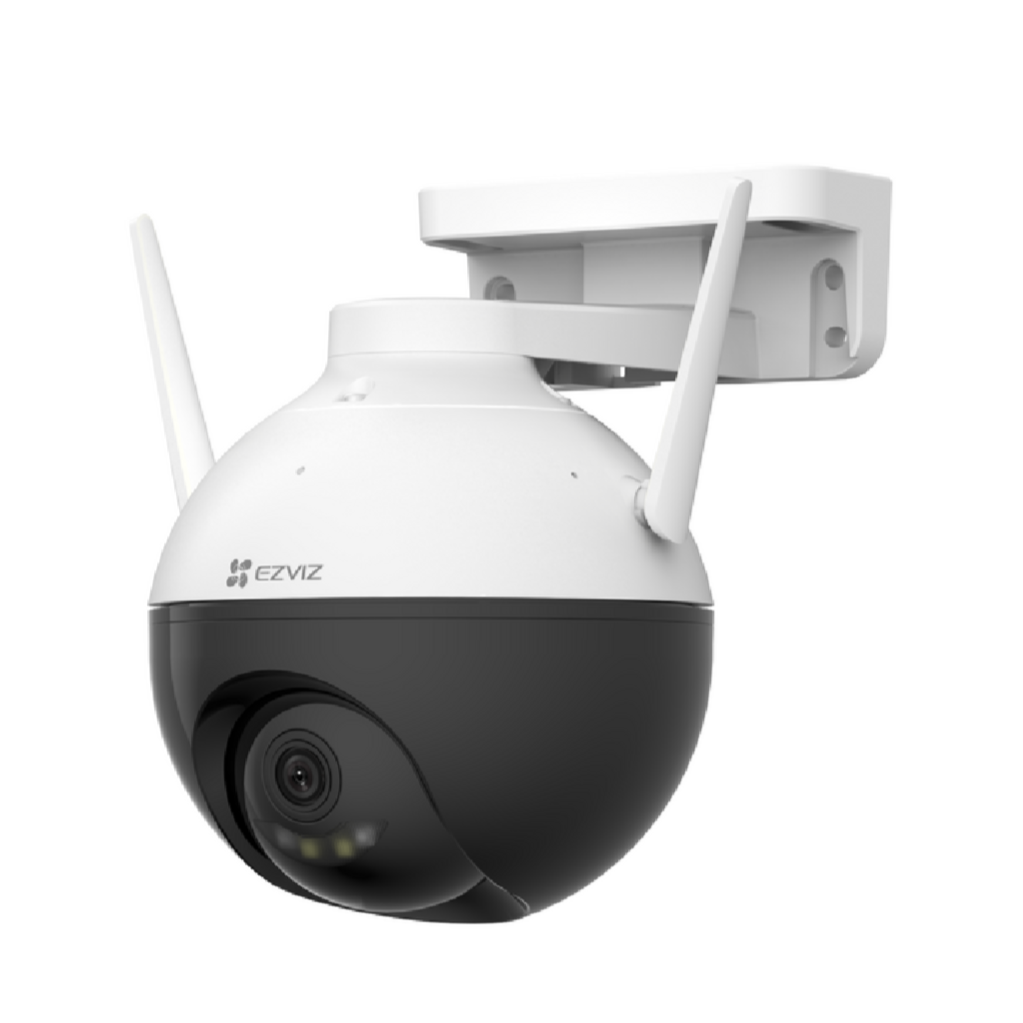

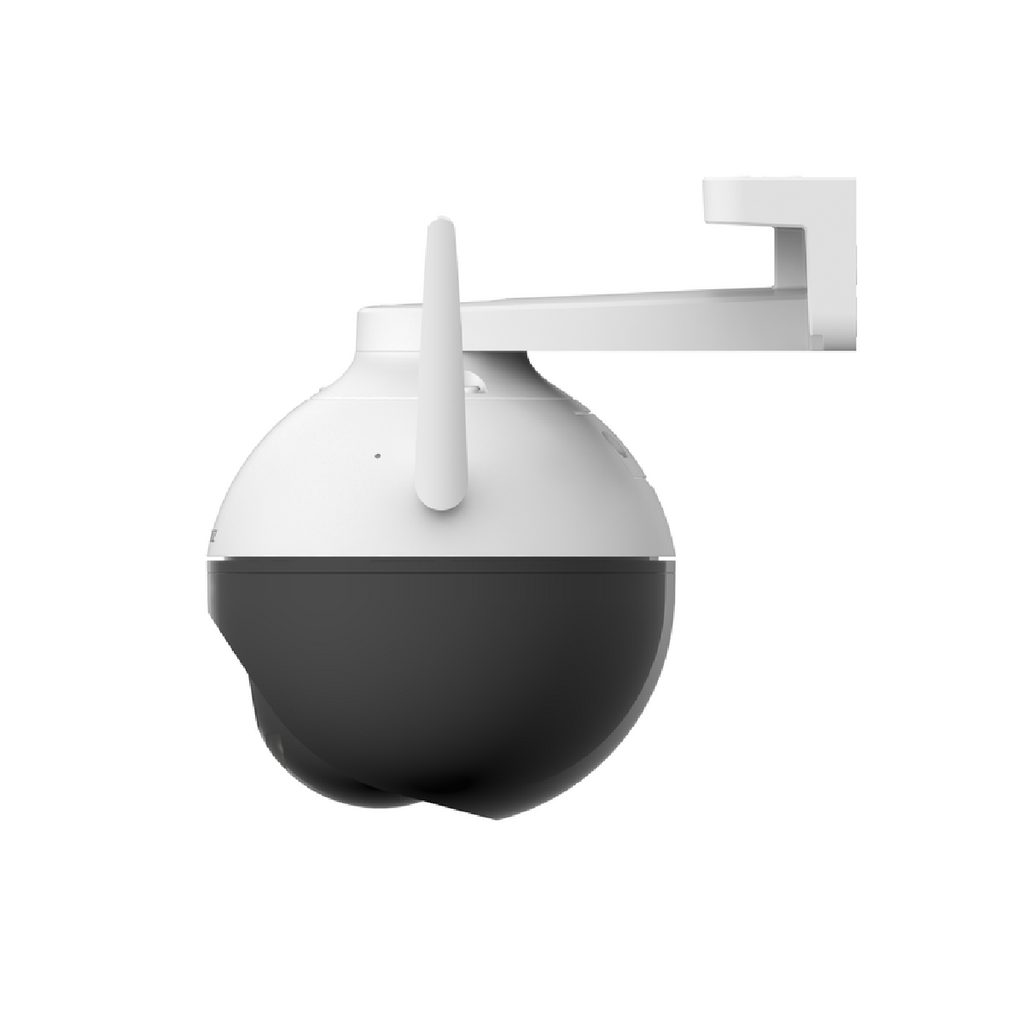

EZVIZ C8w Pro Smart Home Camera 2K -3MP- White -Black -CS-C8W SPECS:
| Model | CS-C8W (4MP,W1) | |
Camera |
||
| Resolution | 4MP /2K⁺ Resolution | |
| Image sensor | 1/2.7” Progressive Scan CMOS | |
| Shutter Speed | Self-adaptive shutter | |
| Lens | 4mm @ F1.6, view angle: 87° (Horizontal), 105° (Diagonal) | |
| PT Angle | Pan: 352°, Tilt: 95° | |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR | |
| Lens Mount | M12 | |
| Day & Night | IR-cut filter with auto-switching | |
| DNR | 3D DNR | |
| WDR | Digital WDR | |
| BLC | Supports | |
| Black & White Night | 30 m / 98 ft. | |
Compression |
||
| Max. Resolution | 2560 × 1440 | |
| Frame Rate | Max. 30 fps, self-adaptive during network transmission | |
| Video Compression | H.265 / H.264 | |
| H.265 Type | Main Profile | |
| Video Bit Rate | Quad HD; Full HD; Hi-Def; Standard. Adaptive bit rate. | |
| Audio Bit Rate | Self-Adaptive | |
| Max. Bitrate | 2Mbps | |
Image |
||
| Max. Resolution | 1920 × 1080 | |
| Frame Rate | Max:25fps; Self-Adaptive during network transmission | |
Network |
||
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | |
| Channel Bandwidth | Supports 20MHz | |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK | |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps | |
| Wi-Fi Pairing | AP pairing | |
| Protocol | EZVIZ Cloud Proprietary Protocol | |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol | |
| Wired Network | RJ45 × 1 (10 M / 100 M Adaptive Ethernet Port) | |
Storage |
||
| Local Storage | MicroSD card slot (Max. 256 GB) | |
| Cloud Storage | EZVIZ Cloud Storage | |
Function |
||
| Smart Alarm | AI-powered human shape detection | |
| Customized Alert Area | Supports | |
| Audio | Supports two-way talk | |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark | |
General |
||
| Operating Conditions | -30°C ~ 60°C ( -22°F to 140°F ), humidity 95% or less (non-condensing) | |
| Power Supply | DC 12V / 1A | |
| Power Consumption | Max. 6W | |
| IP Grade | Weatherproof design | |
| Dimensions | 158 x 157 x 149 mm (6.22 x 6.18 x 5.87 inch) | |
| Packaging Dimensions | 197 x 185 x 205 mm (7.76 x 7.28 x 8.07 inch) | |
| Weight (With Package) | 885 g (31.22 oz) | |
| Net Weight | 510 g (17.99 oz) | |
| In the box |
-
|
|
| Warranty | 12 Months | |
OVERVIEW FOR EZVIZ C8w Pro Smart Home Camera 2K -3MP- White -Black -CS-C8W
Rotate to cover every corner that matters
Can’t see wide enough with your current security camera? The C8W is here to help extend your vision. Being able to pan and tilt to take in 360-degree field-of-view, the camera can easily cover wide areas and greatly reduce blind spots.
On-device AI for smarter detection
Smarter alerts that truly matter
Thanks to the built-in AI algorithm, the C8W can distinguish human shapes from pets or objects, so you’re alerted when something important happens. You can also customize detection sensitivity and time schedules to further filter out unwanted alerts.
Three night vision modes are available to meet any need
