Description
Tenda CP3 Wi-Fi 6 Security Pan - Tilt 3MP Quad HD 2K Camera - White Spec:
Camera |
Image Sensor
|
Lens |
Focal Length
4 mm Aperture
F2.0 FOV
Horizontal FOV: 84°, Vertical FOV: 53.1°, Diagonal FOV: 91.1° |
Illuminator |
Supplementary Light
4 IR lights Supplementary Light Distance
Up to 10 m/30 ft (depending on environment) IR Wavelength
850 nm Night Vision Mode
Black & White Mode |
Video |
Video Encoding Format
H.265 Main Stream Resolution
2304 ×1296 Sub Stream Resolution
640 × 360 Frame Rate
1-20fps, Default 20fps Bit Rate
128kbps -- 4096kbps Bit Rate Control
VBR |
Audio |
Audio Encoding Format
G.711A, G.711U, AAC Audio Sampling Rate
8 kHz Audio Communication
Two-way Audio |
Image |
Image Enhancement
DWDR, 3D DNR Privacy Mask
4 areas |
Network |
ONVIF
Support Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP |
Pan Movement Range
0-355° Tilt Movement Range
-15°-55° Preset
6 Patrol
Panoramic Patrol, Preset Patrol |
|
Wi-Fi |
Antenna
Internal antenna Wireless Standard
IEEE 802.11 b/g/n/ax Transmission Rate
Up to 287 Mbps Channel Width
20/40 MHz Modulation
DSSS/OFDM/OFDMA Frequency Band
2.4GHz: 2412MHz-2472MHz(CH1-CH13) Transmit Power
2.4GHz: <0.04W(EIRP) Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Alarm |
Smart Detection
Motion Detection, Human Detection Smart Linkage
Human Tracking DIY Audio
3 customized audios |
Interface |
Audio Input
Built-in MIC, adjustable microphone volume Audio Output
Built-in Speaker, 68 dBA (Alarm sound at 1 meter), adjustable sound level Storage
Supports up to 256 GB Micro SD card Reset Button
Support LED Indicator
Dual color (red & blue) |
General |
Power
5 V 1A, Type-C Power Plug Material
Plastic Product Dimension
76.7mm x76.7mm x110.4mm(3'' × 3'' × 4.3'') Package Dimension
84mm x 84mm x 165mm (3.3'' × 3.3'' × 6.5'') Product Weight
158g(0.34lb) With Package Weight
331g(0.73lb) Installation Method
Desktop, Ceiling-mounted Certification
CE, FCC, RoHS, UKCA Temperature
Operating Temperature: -10°C ~ 45°C (14°F ~ 113°F) Humidity
Operating Humidity: 10% ~ 95% RH (non-condensing) Package Contents
Camera |
Model | CP3 3MP |
Warranty | 12 Months |
Overview For Tenda CP3 Wi-Fi 6 Security Pan - Tilt 3MP Quad HD 2K Camera - White
2K HD Images, View More Details
360° Panoramic Pan/Tilt Design,
Click to see where you wantWith 360° pan/tilt design, and the lens rotation angle can reach 355° horizontal and 70° vertical. You can control the lens orientation remotely using the APP.


Next-level WiFi 6 Technology,Stable and Smooth Video
Smart Motion Detection,Real-time Alarm for Abnormal Situations


Infrared Night Vision for Uninterrupted Security Protection Day and Night

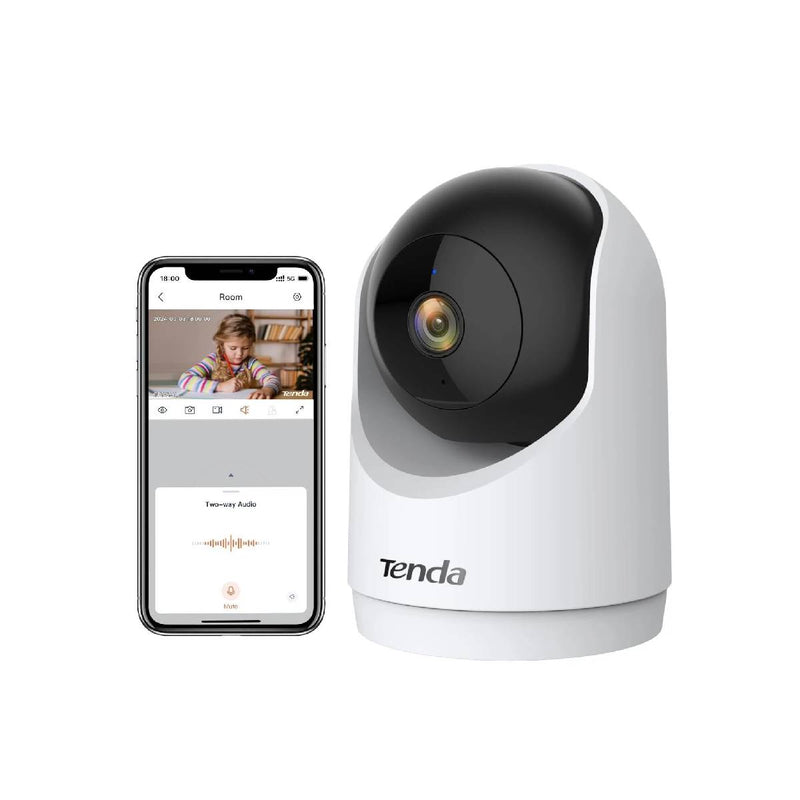

Two-way Audio for Convenient Communication


Schedule Shutter for Effective Privacy Protection
Preset 6 Key Locations for One-tap Quickly View


H.265 Encoding, Double Storage Time
Triple Data Security for Safety Use


Multiple Mounting Methods
