Description
| General Specifications |
Model: CINEMA SB550 Sound system: 3.1 channel
Soundbar output power (Max @THD 1%): 150W
Subwoofer output power (Max. @THD 1%): 100W
Soundbar transducer: 3x (45 x 100) mm racetrack drivers + 2x 13mm tweeters
Subwoofer transducer: 5.25” (133 mm), wireless subwoofer
Standby power: < 0.5 W Operating temperature: 0°C - 45 °C |
| Audio Specifications |
Frequency response: 45Hz-20kHz (-10dB) Audio inputs: 1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.) |
| Dimensions |
Soundbar dimensions (W x H x D): 950 x 64 x 80 mm / 37.4’’ x 2.5’’ x 3.1’’ Subwoofer dimensions (W x H x D): 200 x 324 x 250 mm / 7.9" x 12.8" x 9.9" Soundbar weight: 2.5kg / 5.5 lbs Subwoofer weight: 4.2 kg / 9.3 lbs Packaging dimensions (W x H x D):1025 x 235 x 397 mm / 40.4" x 9.3" x 15.6" Packaging Weight: 8.8kg / 19.4 lbs |
| Control and Connection Specifications |
USB port: Type A USB rating: 5V DC, 0.5A Supporting file formats: mp3 MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 MP3 sampling rate: 16 - 48 kHz Bluetooth version: 5.3 Bluetooth profile: A2DP 1.3, AVRCP 1.6 Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz Bluetooth Max. transmitting power: <10 dBm (EIRP) Bluetooth modulation: GFSK, π/4 DQPSK, 8DPSK 2.4G wireless transmitter frequency range: 2402-2481 MHz 2.4G wireless transmitter power: ＜10dBm (EIRP） 2.4G wireless modulation: GFSK |

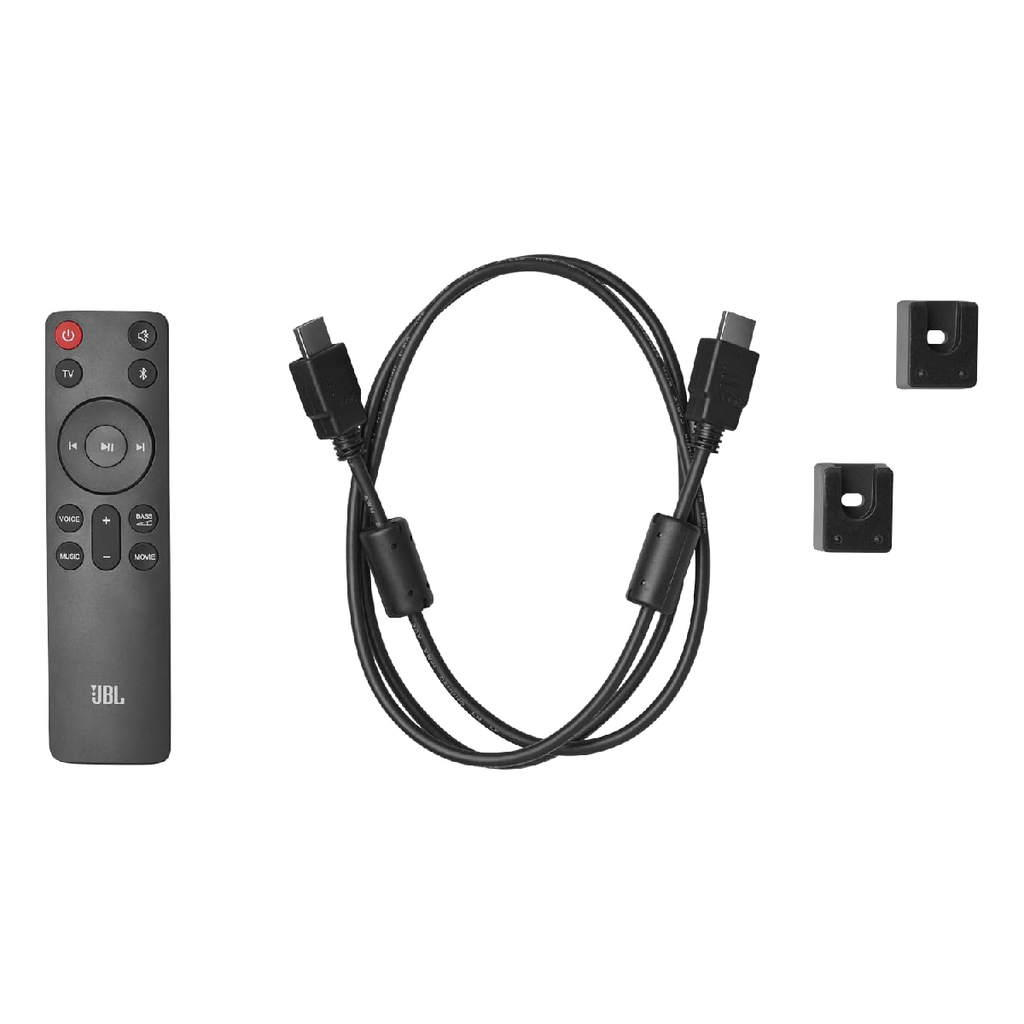

| What's in the box | - Soundbar - Wireless subwoofer - Remote control with batteries - Power cords (up to 8pcs depending on region SKUs) - HDMI cable - Wall-mount bracket kit with screws - Quick start guide - Warranty card - Safety sheet |
| Warranty | Official Warranty |
Description
Epic Bass. Incredible sound.

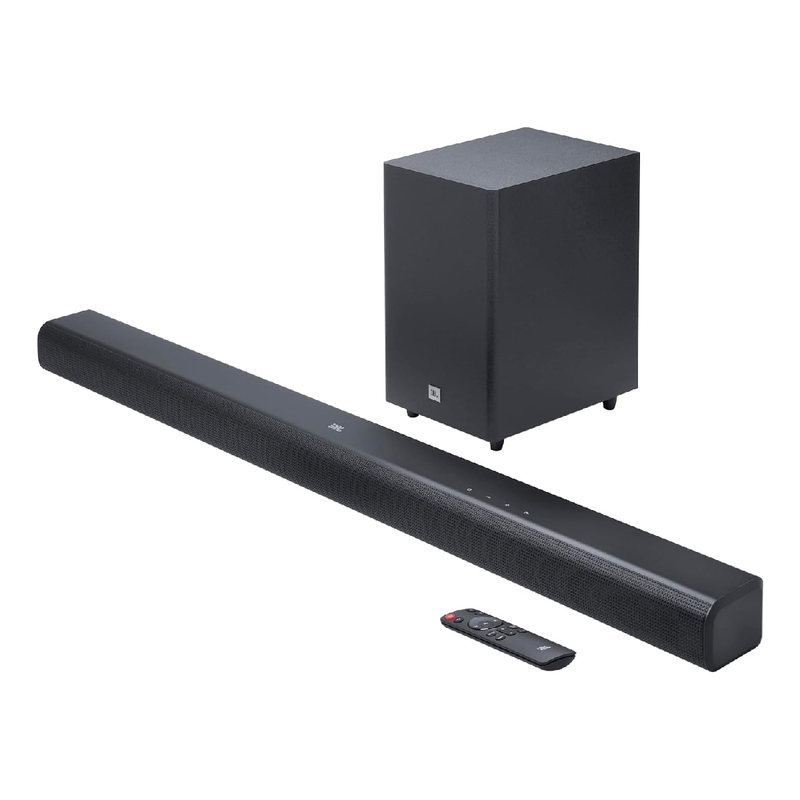

Step up your sound with the 3.1 channel JBL Cinema SB550 soundbar. 250 watts of powerful Dolby Audio in a compact design, plus extra deep, extra loud bass from a wireless 5.25” subwoofer will make everything you watch more exciting. A dedicated center channel means TV and film dialogue always sounds crystal clear. Set-up is simple, with a choice of either a one-cable HDMI ARC or optical connections. And when the TV is off, seamless Bluetooth connectivity means you can use it to play your favorite streaming music and podcasts from any device.
