Description
EZVIZ TY1 Pro Smart Home Camera Security - White -Black SPECS:
Model | CS-TY1-R105-1L2WF | |
Camera |
||
Image sensor | 1/3" Progressive Scan CMOS | |
Shutter Speed | Self-adaptive shutter | |
Lens | 4mm @ F1.6; Viewing angle: 80° (Horizontal), 43° (Vertical), 90° (Diagonal) | |
Lens Mount | M12 | |
Day & Night | IR-cut filter with auto switch | |
DNR | 3D DNR | |
WDR | Digital WDR | |
Compression |
||
Video Compression | H.264/H.265 | |
H.265 Type | Adaptive bit rate. | |
Image |
||
Max. Resolution | 1920 × 1080 | |
Frame Rate | Self-Adaptive during network transmission | |
Network |
||
Smart Alarm | Motion Detection, Human Shape Detection, Human Shape Tracking, Loud Noise Detection, Patrol Mode | |
Wi-Fi Pairing | AP paring | |
Protocol | EZVIZ cloud proprietary protocol | |
Interface Protocol | EZVIZ cloud proprietary protocol | |
Interface |
||

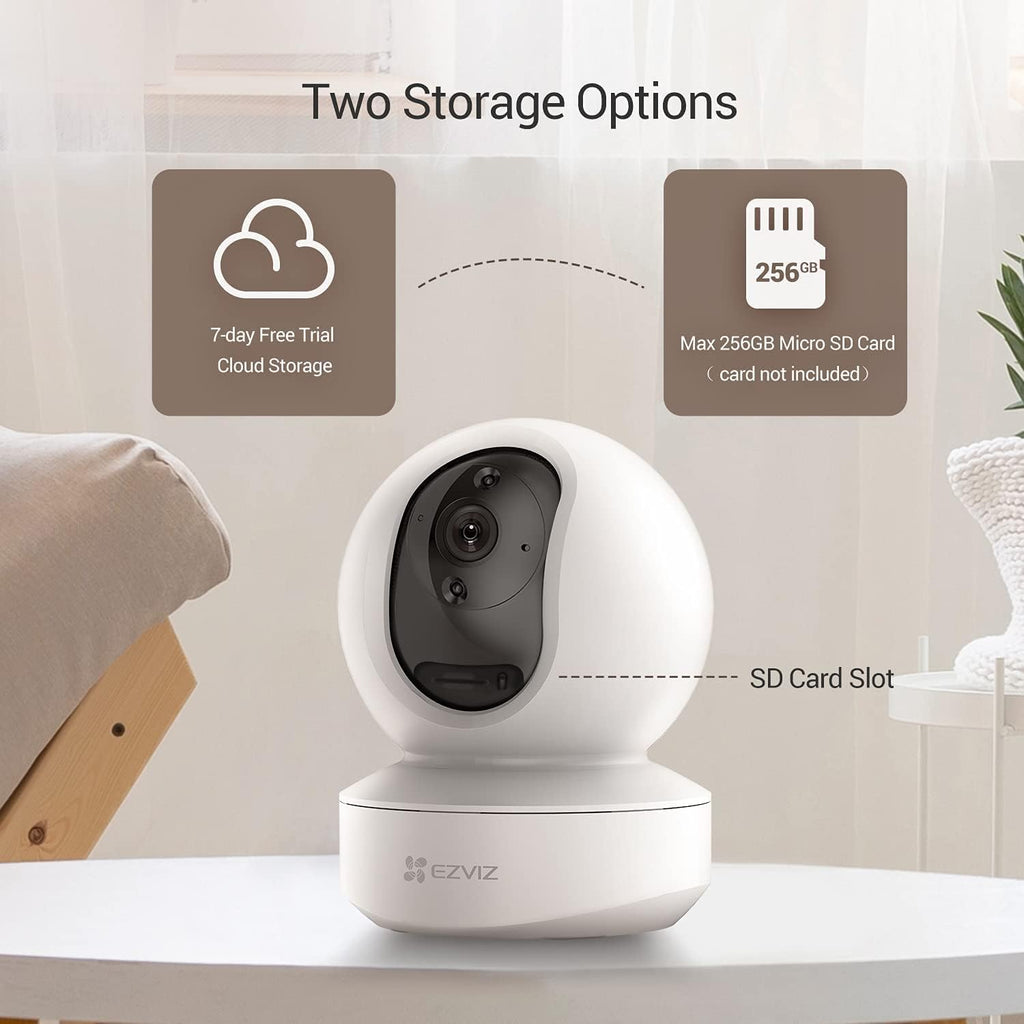

Storage | Micro SD card slot (Max. 512G) | |
Power | Type-C | |
Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) | |
General |
||
Operating Conditions | 10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) | |
Power Supply | DC 5V/1A | |
Power Consumption | MAX. 5W | |
IP Grade | MAX. 10 meters(32.81ft) | |
Dimensions | 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”) | |
Packaging Dimensions | 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”) | |
Bare Weight | 218g (0.48lb) | |
In the box |
|
|
Warranty | 12 Months |
OVERVIEW FOR EZVIZ TY1 Pro Smart Home Camera Security - White -Black
