Description
| Brand | AOC |
| Panel | 23.8" / IPS |
| Pixel Pitch (mm) | 0.2745 (H) × 0.2745 (V) |
| Effective Viewing Area (mm) | 527.04 (H) × 296.46 (V) |
| Brightness (typical) | 250 cd/m² |
| Contrast Ratio | 1000 : 1 (typical) 20 Million : 1 (DCR) |
| Response Time | 1ms (MPRT) |
| Viewing Angle | 178° (H) / 178° (V) (CR > 10) |
| Color Gamut | NTSC 90% (CIE1976) / sRGB 100% (CIE1931) |
| Optimum Resolution | 1920 × 1080 @ 100Hz – HDMI; 1920 × 1080 @ 75Hz – VGA |
| Display Colors | 16.7 Million |

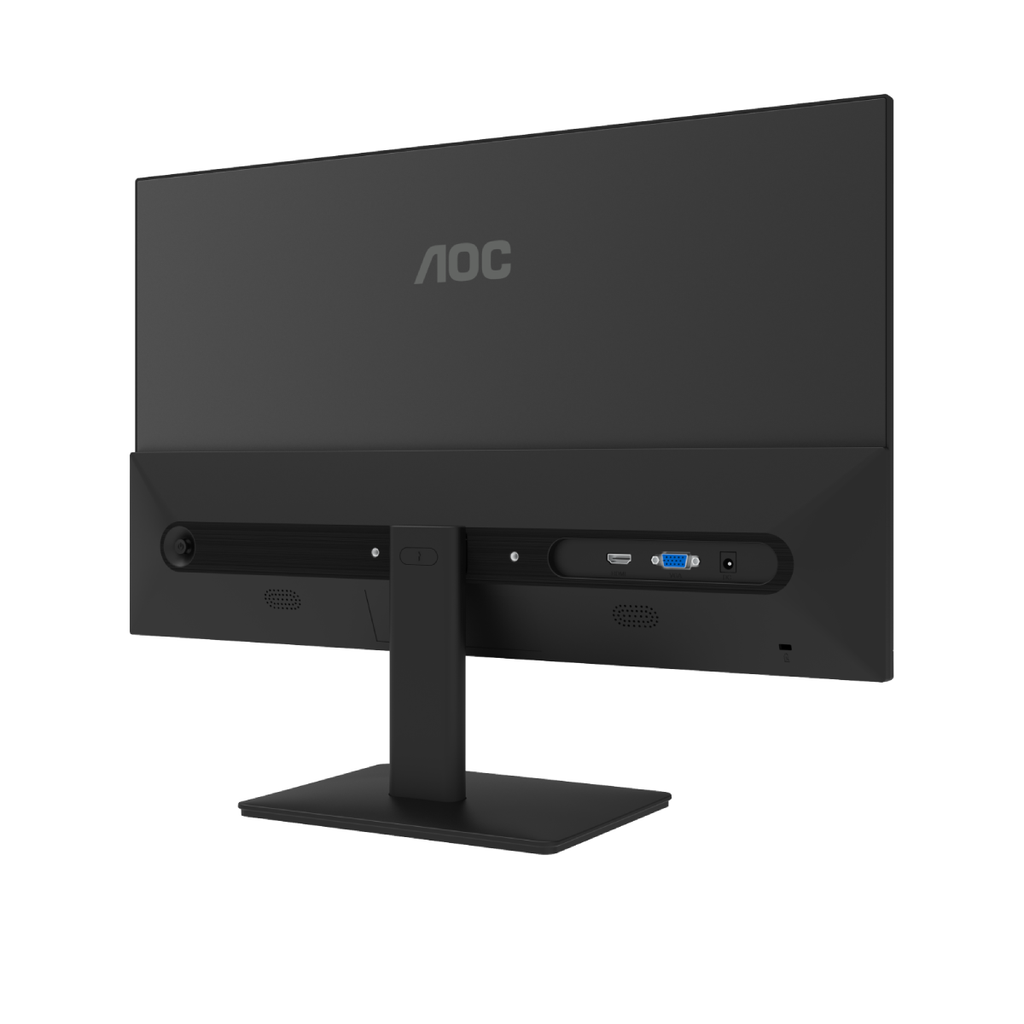

| Signal Input | VGA × 1, HDMI 1.4 × 1 |
| HDCP Version | HDMI : 1.4 |
| Power Supply | External 12VDC, 2.5A |
| Power Consumption (typical) | 24W |
| Wall-Mount | 100x100 mm ( 2holes) |
| Adjustable Stand | Tilt : —5° ~ 15° |
| Product without Stand (mm) | 321.3 (H) × 540.9 (W) × 35.1 (D) |
|
Product with Stand (mm) |
418.2 (H) × 540.9 (W) × 168 (D) |
| Packaging (mm) | 387 (H) × 598 (W) × 100 (D) |
| Model | 24B20JH2 |
| Color | Black |
| Warranty | Official Warranty 3 Years |
Details
Designed with wide viewing angles
IPS displays deliver 178/178-degree viewing angles while maintaining consistent image quality and colors from all viewing positions. You can also view your spreadsheets or weekend movies from virtually any angle without compromising color uniformity.
A universally respected anti-tearing solution
Gaming shouldn't be a choice between choppy gameplay or broken frames. Get fluid, artifact-free performance at virtually any framerate with Adaptive-Sync technology, smooth quick refresh and ultra-fast response time.
See more and see it clearer
Break away from the shackles of bezels with AOC's 3-Sided Frameless Design monitors. This virtually frameless monitor has extremely narrow bezel around a stunning screen. When used as part of a multi-monitor setup it offers a near-seamless and elegant transition between screens. Beauty, form, and function. Isn't it time you broke free from your bezels?
Protect your eyes from screen flicker
Flicker-free technology reduces flicker to give you a more comfortable gaming experience. Normal LED-backlit monitors adjust brightness using PWM (Pulse Width Modulation) which causes flickering and results in eye discomfort over long periods oftime. AOC flicker-free technology uses a DC (Direct Current) backlight system to provide a more comfortable and healthier viewing experience, minimizing the effects of eye fatigue during work hours.
Reducing shortwave blue light output for healthier eyes
AOC Low Blue Mode setting ensures a more healthy viewing experience for prolonged computer use without compromising the naturally vivid colors of the display.
