Description
| Brand | Thermal Grizzly |
| Degree of hardness | Shore 00-60 |
|---|---|
| Electrically insulating | Yes(8KV/mm ASTM D149) |
| Flammability | V-0 |
| Operating temperature | -100°C to +250°C |
| Size | 120 x 20 mm |
| Thickness | 0.5 mm |
| Color | Pink |
| Warranty | Official Warranty |
Details

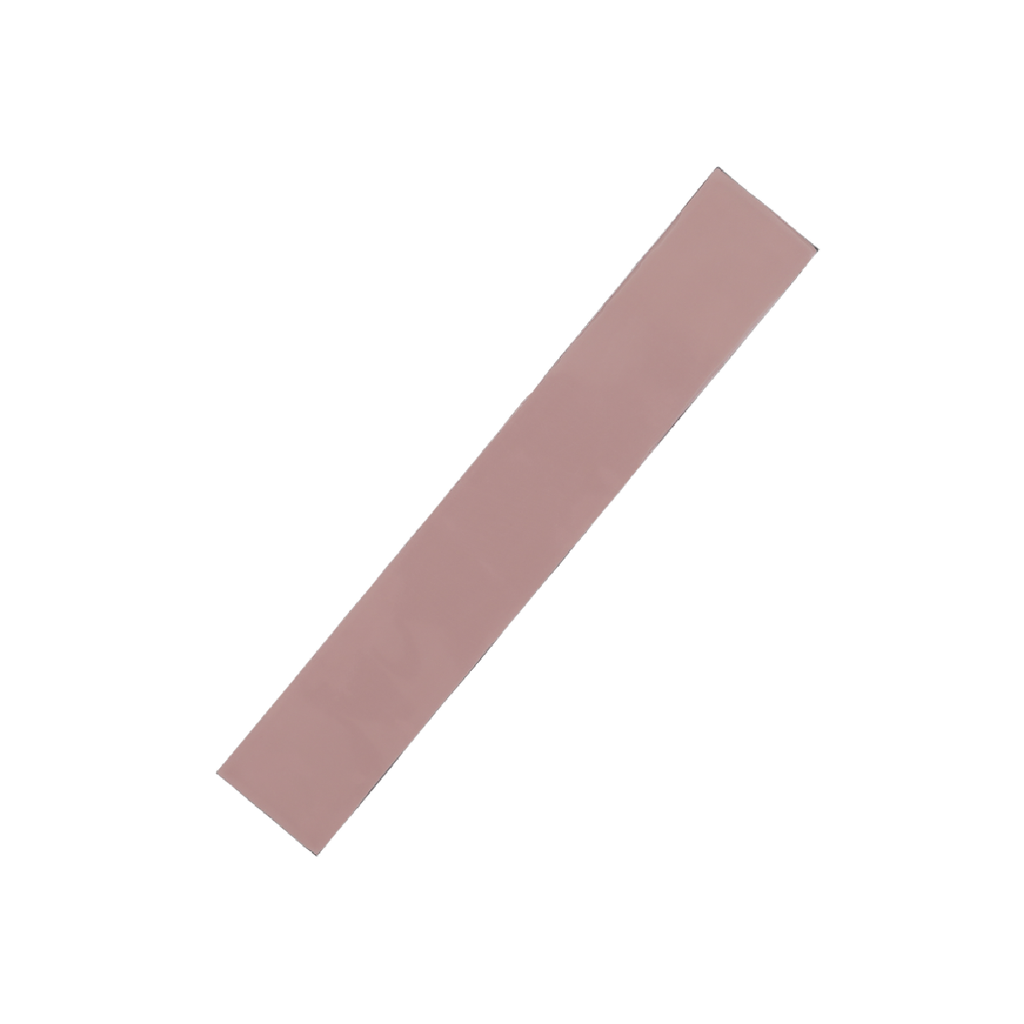

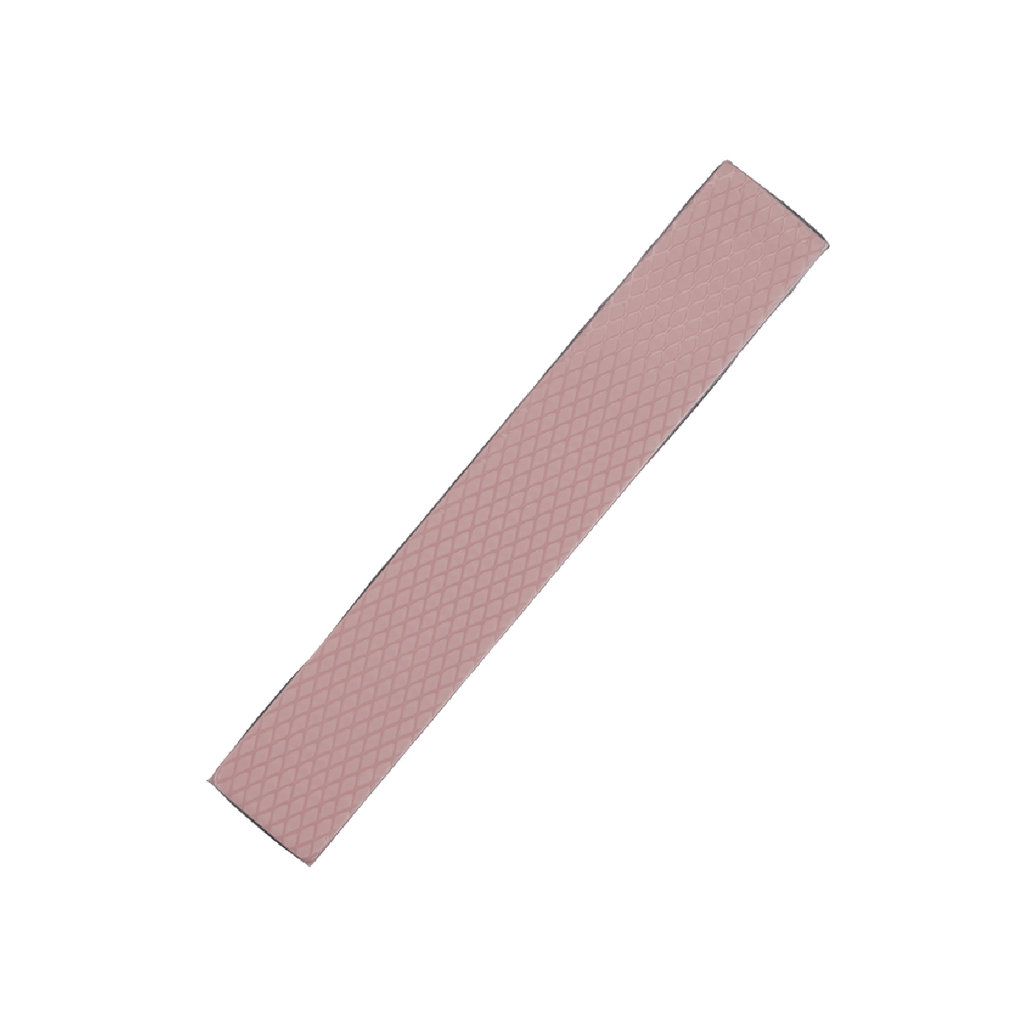

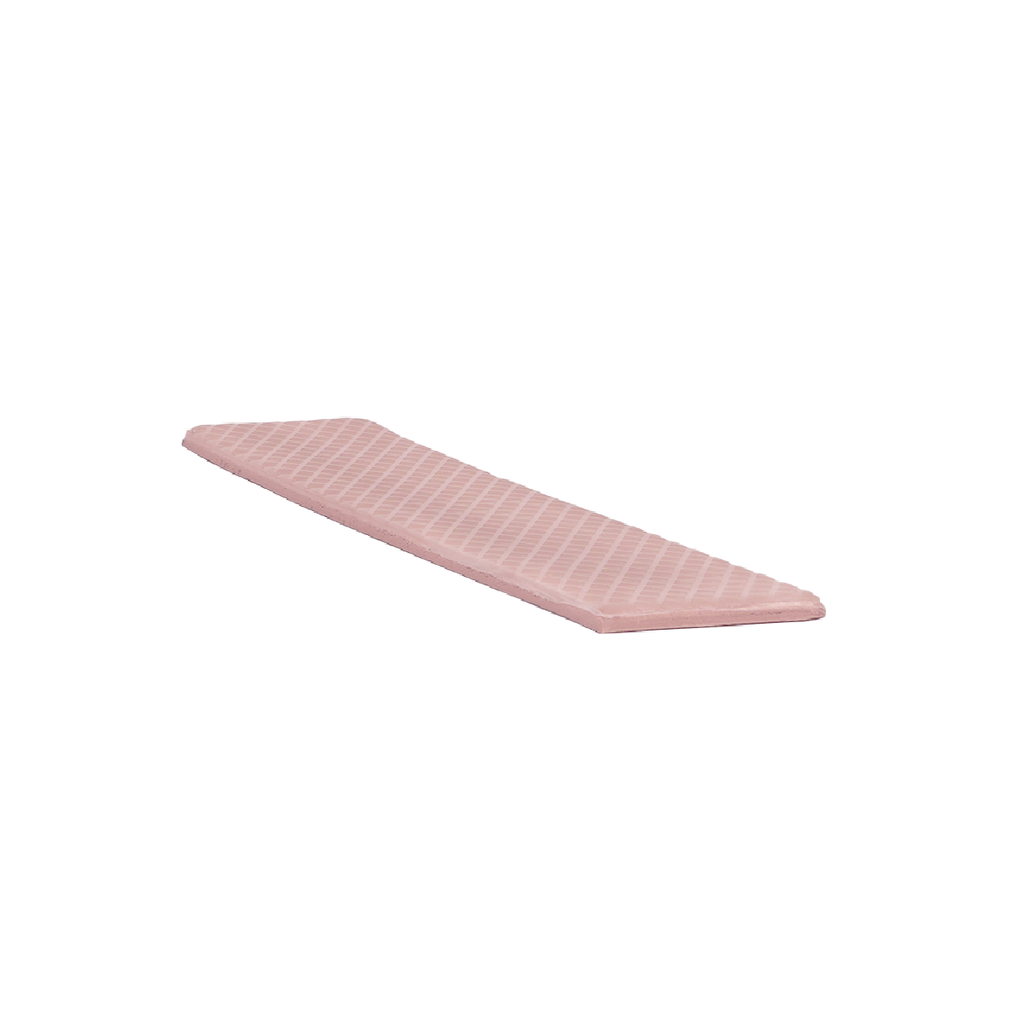

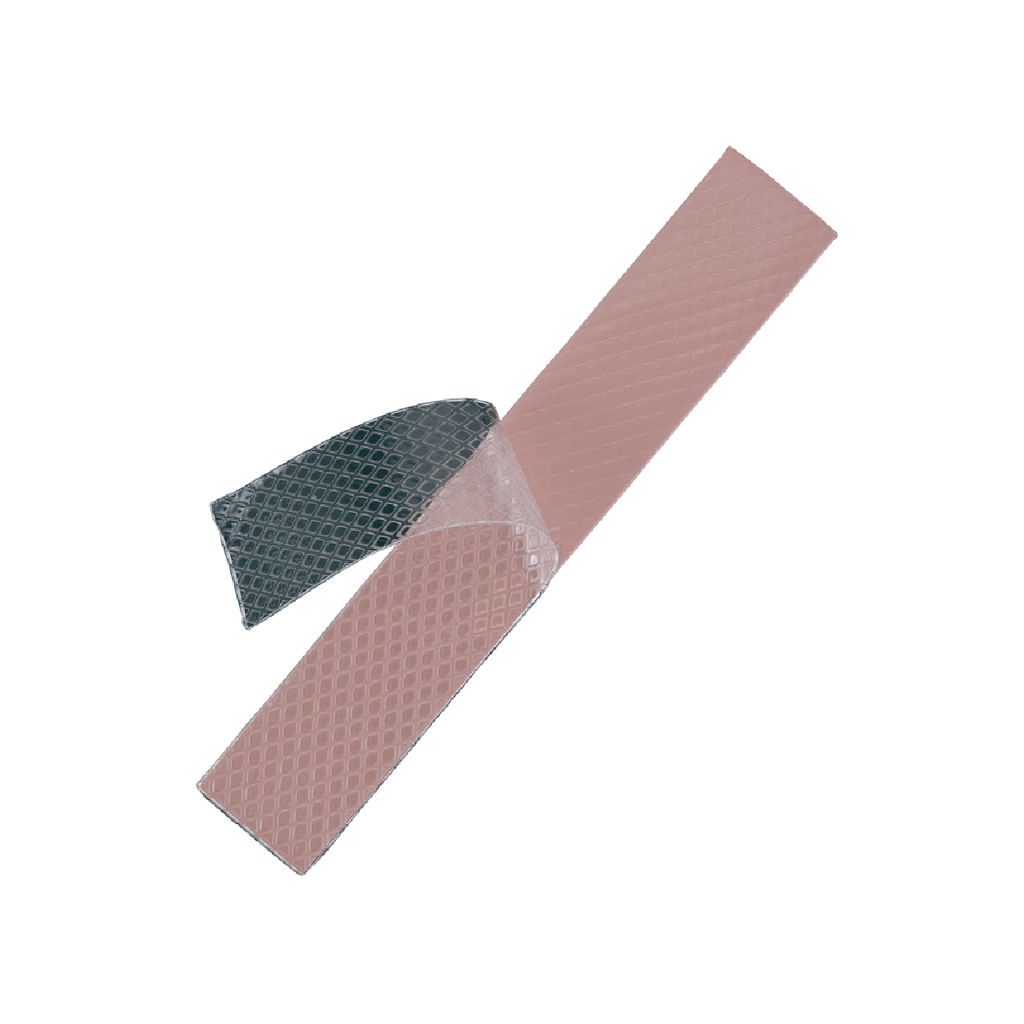

The high performance thermal pads of the Thermal Grizzly Minus Pad series consist of a very elastic and flexible surface area with very high thermal conductivity, compensating for even the smallest of gaps between components. Available in a variety of different sizes and thicknesses.
The easy to process and flexible minus pads are made up of different constituents, based on a ceramic silicon formula complex and nano aluminum oxide. Thus, the pads ensure a constant, optimal heat transfer.

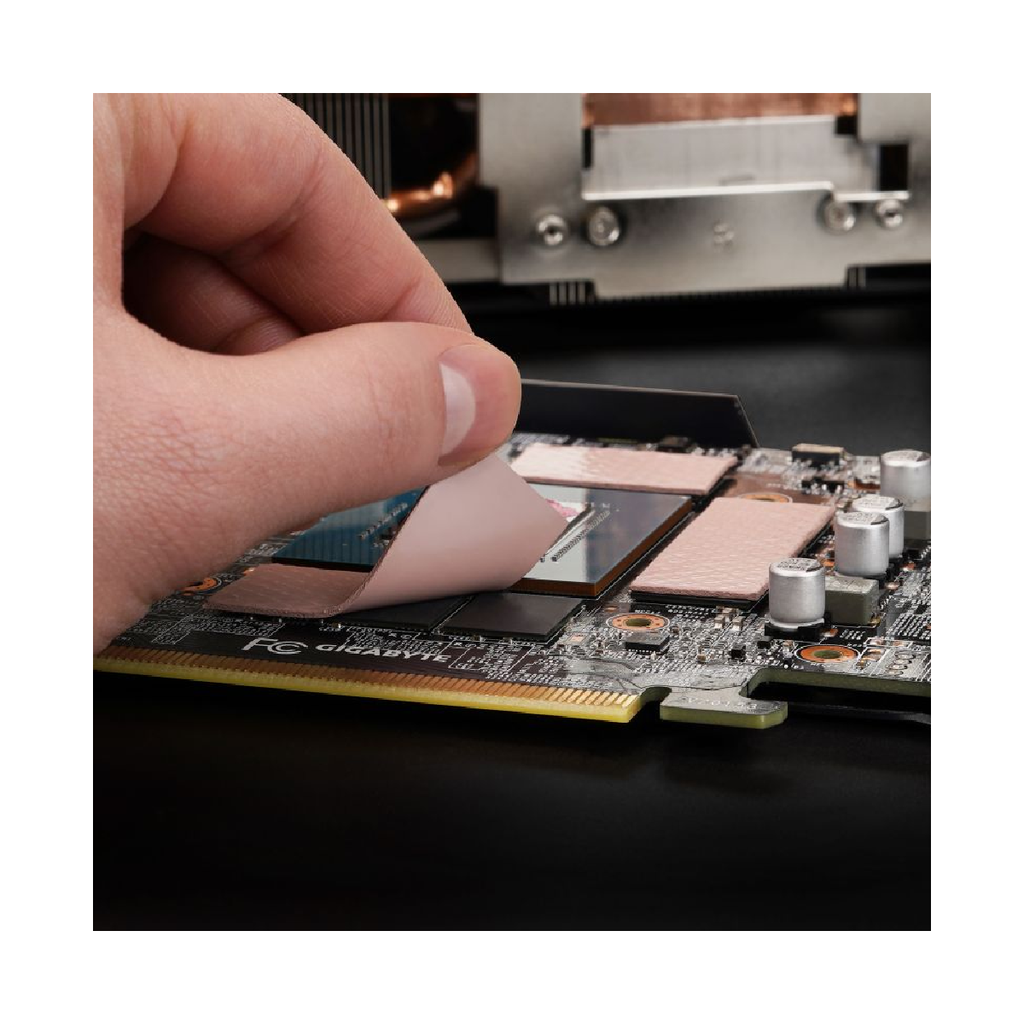

The lightest of touches is enough to attach them optimally. All pads are ecofriendly and RoHS-compliant.
- High thermal conductivity
- High compressibility
- Electrical insulation
The minus pads 8 are available in the sizes of 30x30mm, 120x20mm, 100x100mm as well as in the thicknesses of 0,5mm, 1mm, 1,5mm, 2mm, 3mm.
