Thermal Grizzly 90° WireView GPU Pro 1x12 VHPWR Normal- Black

Thermal Grizzly 90° WireView GPU Pro 1x12 VHPWR Normal- Black  Spec:

Overview For Thermal Grizzly 90° WireView GPU Pro 1x12 VHPWR Normal- Black

The 90° WireView Pro GPU enables the measurement of graphics card power consumption through the 12VHPWR power connector and records the data to determine energy usage. These readings can be used to calculate GPU power costs or compare power consumption across different graphics cards. A special measurement cycle of the last 60 seconds allows for a quick and convenient display of power consumption, making it ideal for hardware reviews. Additionally, GPU power consumption can be tracked over time or during specific workloads. The device also detects power peaks, which can occur during operation with high-end graphics cards.

With connector detection, temperature sensors, and an acoustic alarm, the Pro version includes additional safety features. The connector detection of the 90° WireView Pro GPU determines whether a 150W, 300W, 450W, or 600W power cable is in use. It is important to note that the 90° WireView Pro GPU only measures power consumption via the power connector and does not account for additional power drawn through the PCIe slot. If an incorrect cable is used or a loose connection is detected, an alarm will sound.

Two temperature sensors located on the PCB at the power connectors monitor the temperatures at the power input. Up to 600W of power can flow through these connectors, causing significant heat buildup at the connectors and PCB. If a preset temperature threshold is exceeded, an acoustic alarm is triggered. Additionally, two external temperature sensors (10K NTC) can be connected via cables. Two sensors with cable lengths of 5 cm and 20 cm are included in the package. The alarm can also be triggered if the adjustable current limit (amperage) is exceeded.

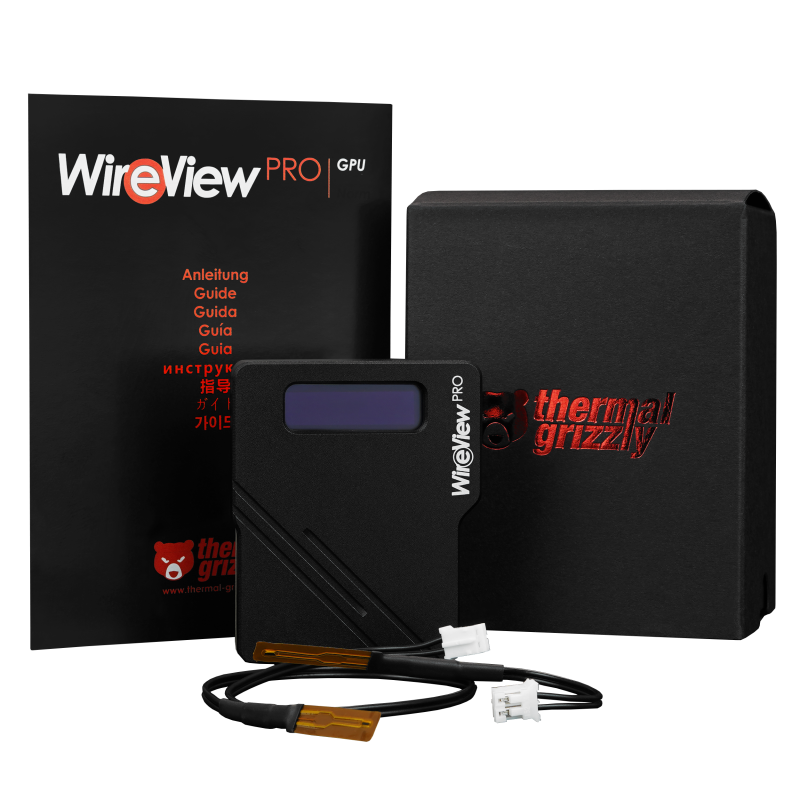

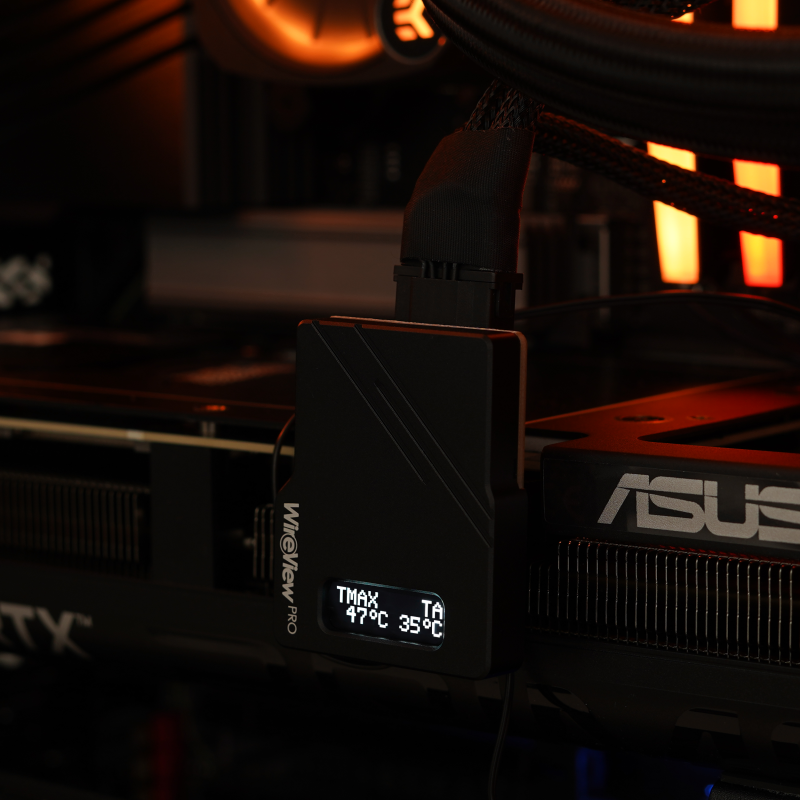

The 90° WireView Pro GPU displays measured values on the OLED screen. A button allows users to switch between displayed values, including:

• Current power consumption in watts (W)
• Current voltage in volts (V) and current in amperes (A)
• Minimum and maximum power consumption in watts (W)
• Average power consumption over 60 seconds (RAVG in W) and total energy consumption (E in WH)
• Measured temperatures from each temperature sensor (°C)

The 90° WireView Pro GPU is available with the 12VHPWR 16-pin power connector (4x sensor + 12x power/ground) in two versions: "Normal" (N) and "Reverse" (R):

• If the GPU's power connector has the four sensor pins positioned between the PCB and the 12 power pins, the "N" version is required (PCB - 4x sensor pin - 12x power pins).
• If the GPU's power connector has the 12 power pins positioned between the PCB and the four sensor pins, the "R" version is required (PCB - 12x power pins - 4x sensor pin).
