DJI Mic 2 - (1TX + 1RX) BR/EDR

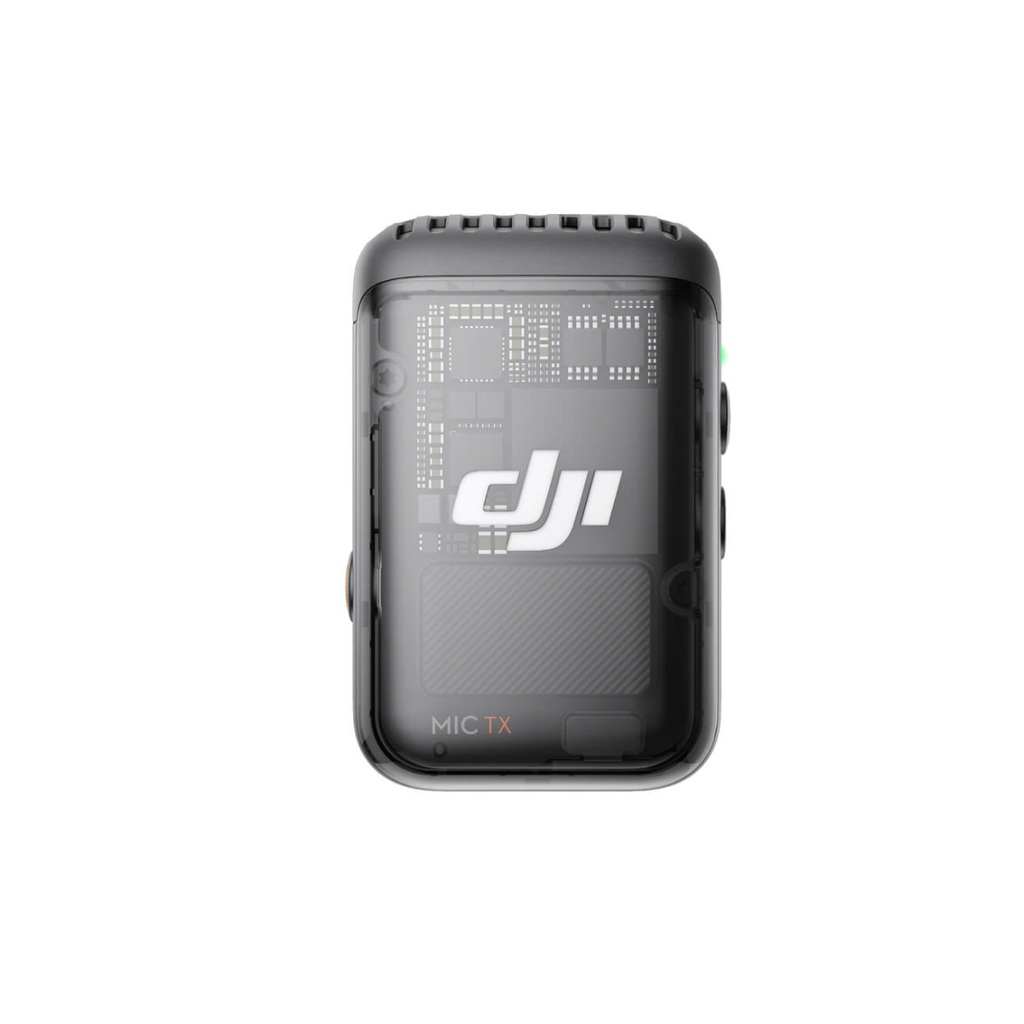

Model
DMT02

Dimensions
46.06×30.96×21.83 mm (L×W×H)

Weight
28 g

Wireless Mode
GFSK 1 Mbps and 2 Mbps

Equivalent Isotropic Radiated Power (EIRP)
<20 dBm

Wireless Mode Operating Frequency
2.400-2.4835 GHz

Bluetooth Protocol
BR/EDR

Bluetooth Operating Frequency
2.400-2.4835 GHz

Bluetooth Transmitter Power (EIRP)
<20 dBm

Battery Type
Li-ion

Battery Capacity
360 mAh

Battery Energy
1.39 Wh

Battery Voltage
3.87 V

Charging Temperature
5° to 45° C (41° to 113° F)

Operating Temperature
-10° to 45° C (14° to 113° F)

Charging Time
70 mins

Operating Time
6 hours
Tested when both TXs are connected to the RX without recording backup clips internally, and the RX is connected to a camera via Camera Audio Cable (3.5mm TRS).

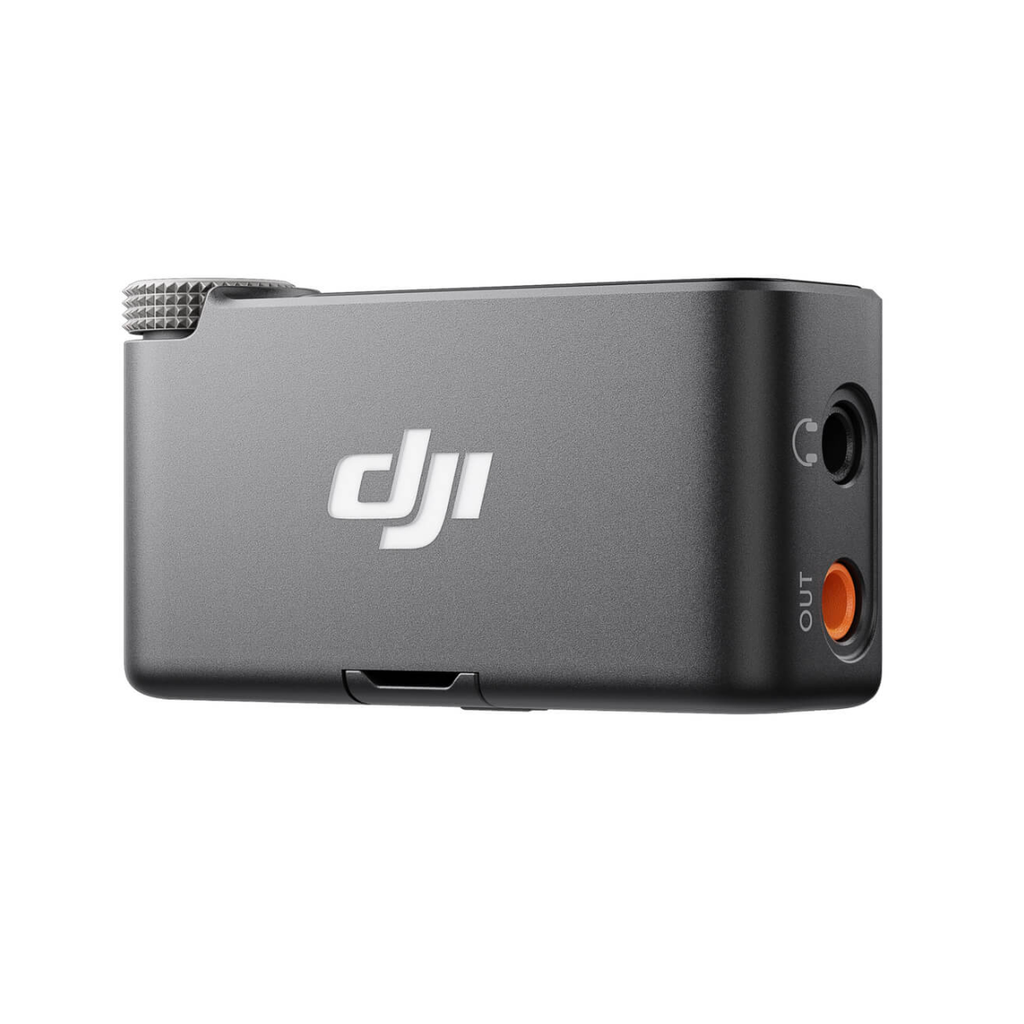

Model
DMR02

Dimensions
54.20×28.36×22.49 mm (L×W×H)

Weight
28 g

Wireless Mode
GFSK 1 Mbps and 2Mbps

Equivalent Isotropic Radiated Power (EIRP)
<20 dBm

Operating Frequency
2.400-2.4835 GHz

Battery Type
Li-ion

Battery Capacity
360 mAh

Battery Energy
1.39 Wh

Battery Voltage
3.87 V

Charging Temperature
5° to 45° C (41° to 113° F)

Operating Temperature
-10° to 45° C (14° to 113° F)

Charging Time
70 mins

Operating Time
6 hours
Tested when both TXs are connected to the RX without recording backup clips internally, and the RX is connected to a camera via Camera Audio Cable (3.5mm TRS).
