Thermal Grizzly CPU Contact Frame intel 1700 LT -TG-CF-i1700-LT

Thermal Grizzly CPU Contact Frame intel 1700 LT -TG-CF-i1700-LT Spec:

Overview For Thermal Grizzly CPU Contact Frame intel 1700 LT -TG-CF-i1700-LT

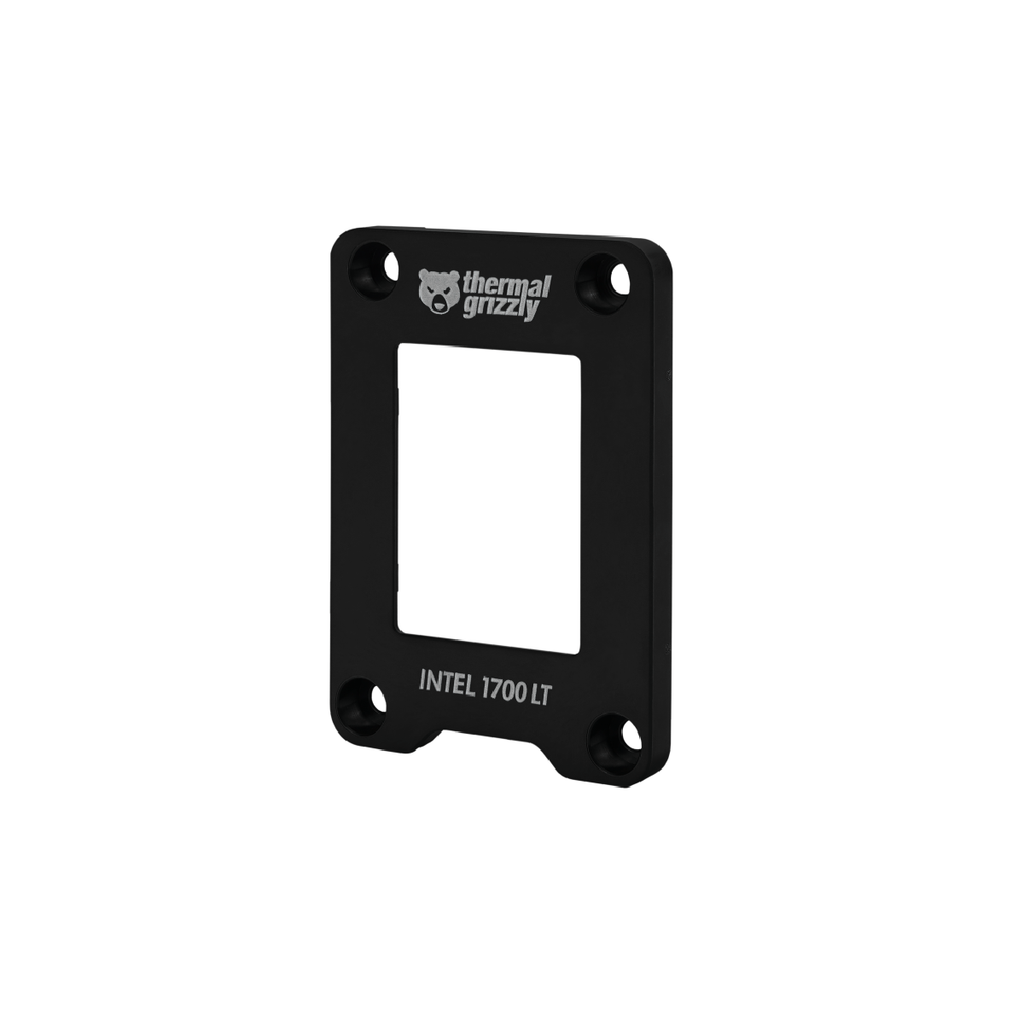

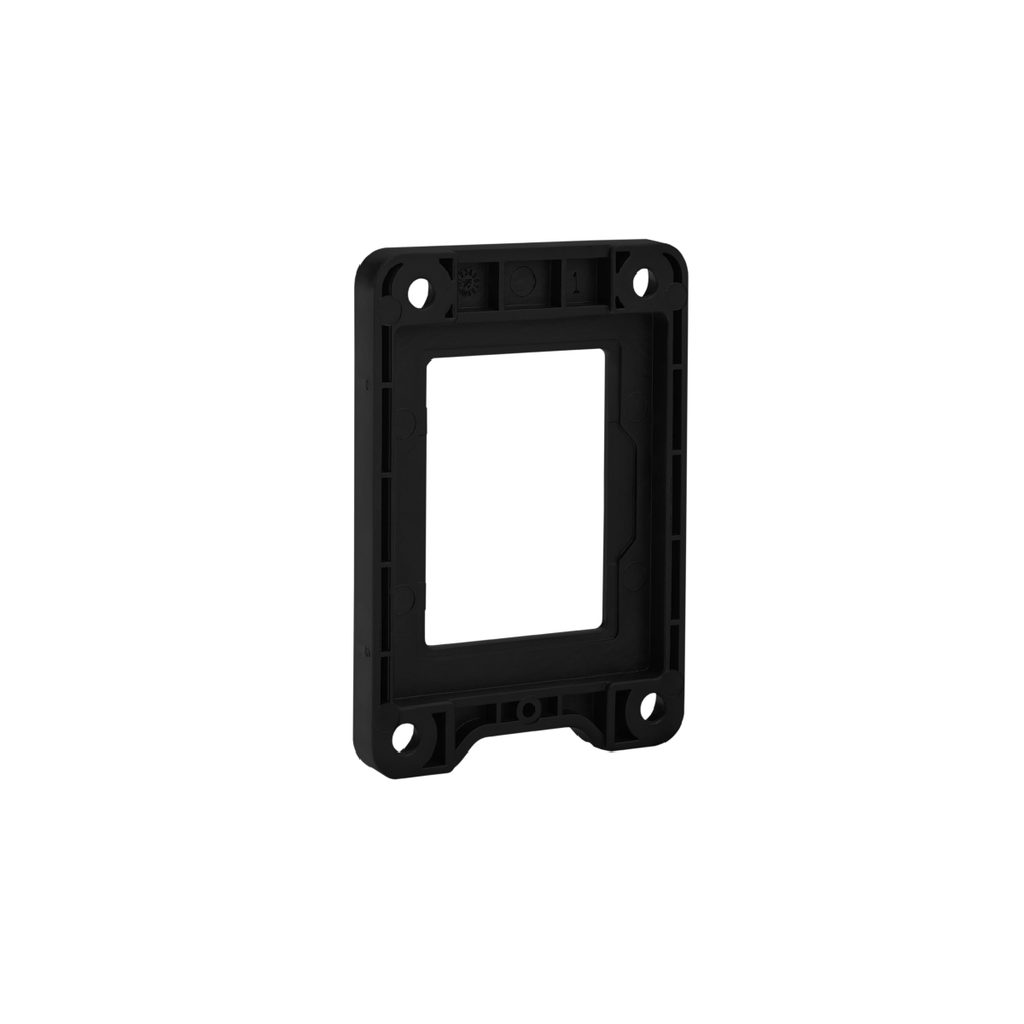

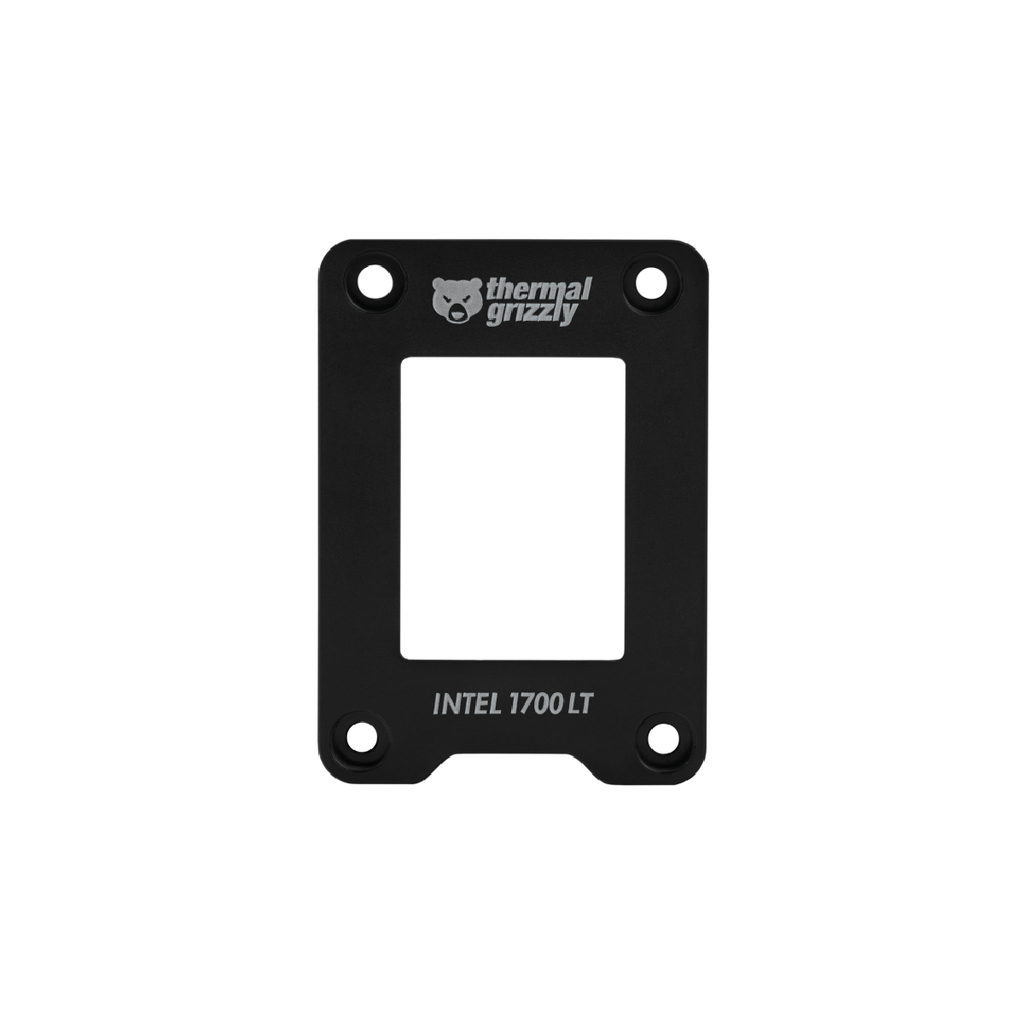

The Thermal Grizzly CPU Contact Frame Intel 1700 LT is the "Lite" version of the Intel 13th/14th Gen CPU Contact Frame and is manufactured by injection molding. The material used is an acrylonitrile-butadiene-styrene copolymer, which has a 15 percent glass fiber content for additional stability.

The standard Integrated Loading Mechanism (ILM) has contact points located in the centre of the elongated CPU. Due to the resulting uneven contact pressure of the processor into the socket, the surface of the Integrated Heat Spreader (IHS) curves concavely. As a result, the base plate of the CPU cooler rests primarily on the edges of the IHS, so that the thermal "hotspot" in the middle of the CPU is not optimally covered.
