Description

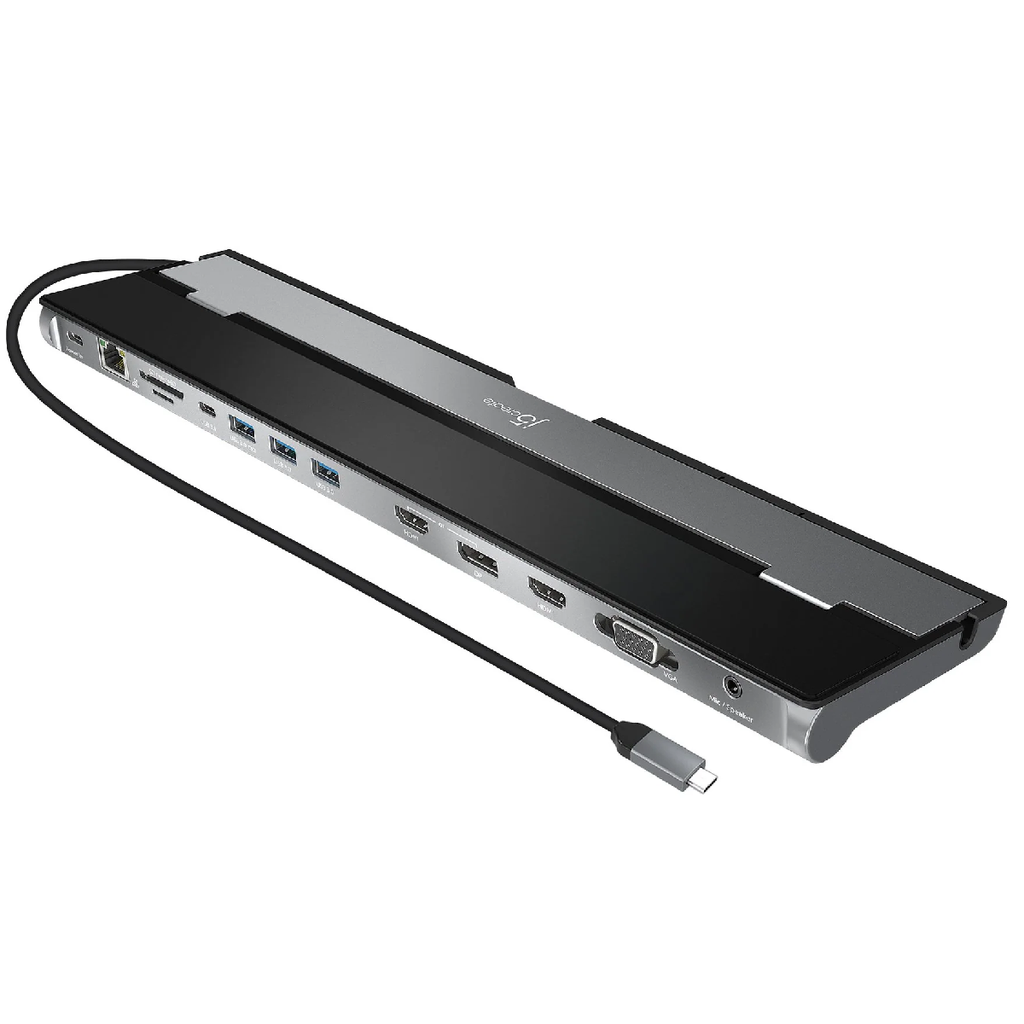

j5 Create JCD543 USB-C™ Triple Display Docking Station DisplayPort™ Alt Mode / USB™ Power Delivery Compatible Spec:
| Brand | j5 Create |
| Host Interface | USB-C™ Male |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Ports | 2 - USB™ 3.0 Type-A 1 - USB™ 3.0 Type-A fast charge 1 - USB-C™ 3.1 Gen 1 1 - USB-C™ Power Delivery 3.0 2 - 4K HDMI™ 1 - DisplayPort™ 1 - VGA 1 - SD™ & microSD™ memory card reader/writer 1 - RJ45 Gigabit Ethernet 1 - 3.5 mm combo audio jack |
| Power Source | Bus-powered or Self-powered |
| Video Output | 2 - HDMI™ Female 1 - DisplayPort™ Female 1 - VGA Female |
| Power |
Input Current: 5A Input Voltage: 20V Output Current: 4.75A Output Voltage: 20V Power Consumption: ≤ 900 mA Power Delivery: Up to 100W via USB-C™ |
| Performance |
Audio Channel: 2.1 via HDMI™/DisplayPort™/3.5 mm Aux Compatible Networks: 10/100/1000 Mbps Displays Supported: 3 (HDMI™, VGA and DisplayPort™ or HDMI™) Max Data Transfer Rate: 5 Gbps Max Display Refresh Rate: HDMI™/DisplayPort™ 4K: 30 Hz HDMI™/DisplayPort™ 1080p: 60 Hz VGA: 60 Hz Max Display Resolution: HDMI™/DisplayPort™: 3840 x 2160 VGA: 1920 x 1080 |
| Physical Spec | Operating Humidity: < 85% non-condensing Operating Temperature: 32 to 118°F (0 to 48°C) Product Depth: 13.78 in. (350 mm) Product Height: 0.92 in. (23.37 mm) Product Weight: 10.58 oz (300g) Product Width: 3.25 in. (82.5 mm) Storage Humidity: < 85% non-condensing Storage Temperature: 14 to 149°F (-10 to 65°C) |
| Cable Length | 1.48 ft (45 cm) |
| Model | JCD543 |
| Color | Gray |
| Warranty | 12 Month |
Overview For j5 Create JCD543 USB-C™ Triple Display Docking Station DisplayPort™ Alt Mode / USB™ Power Delivery Compatible
