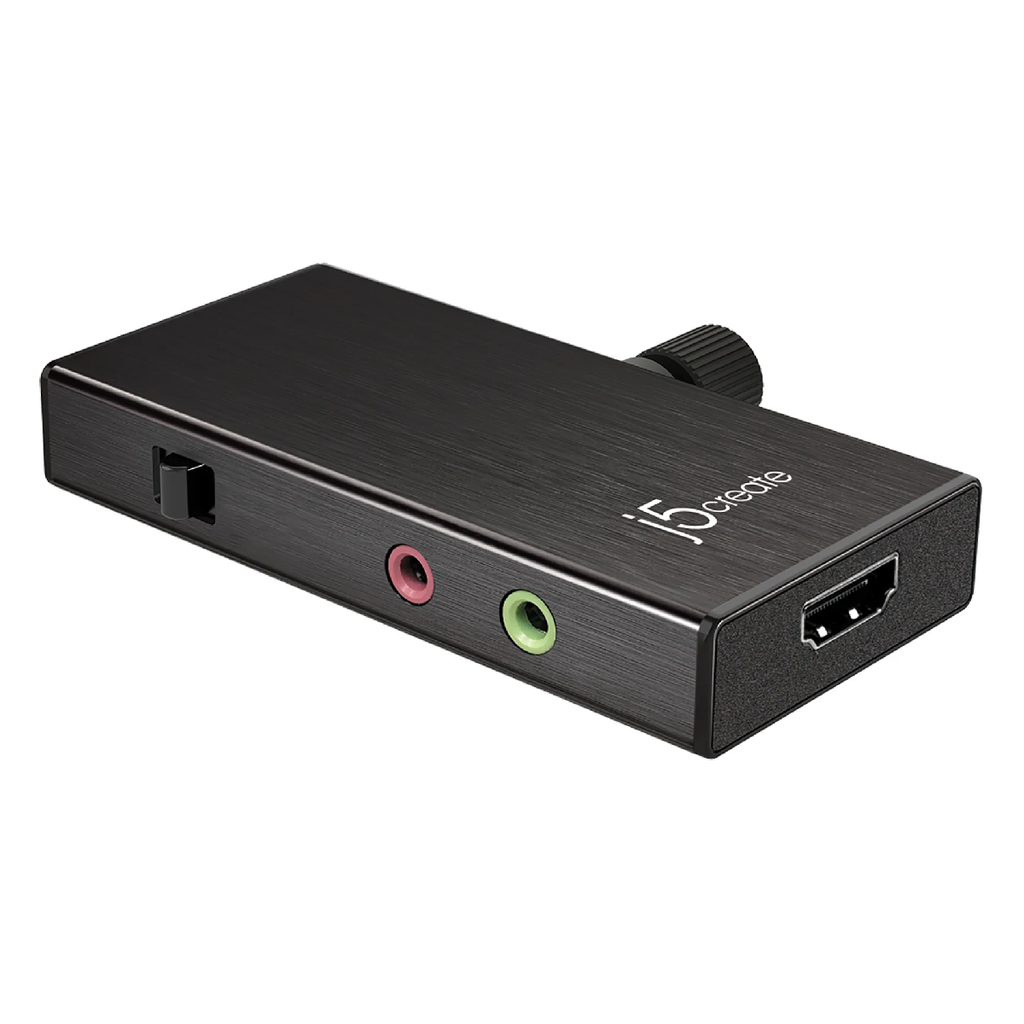

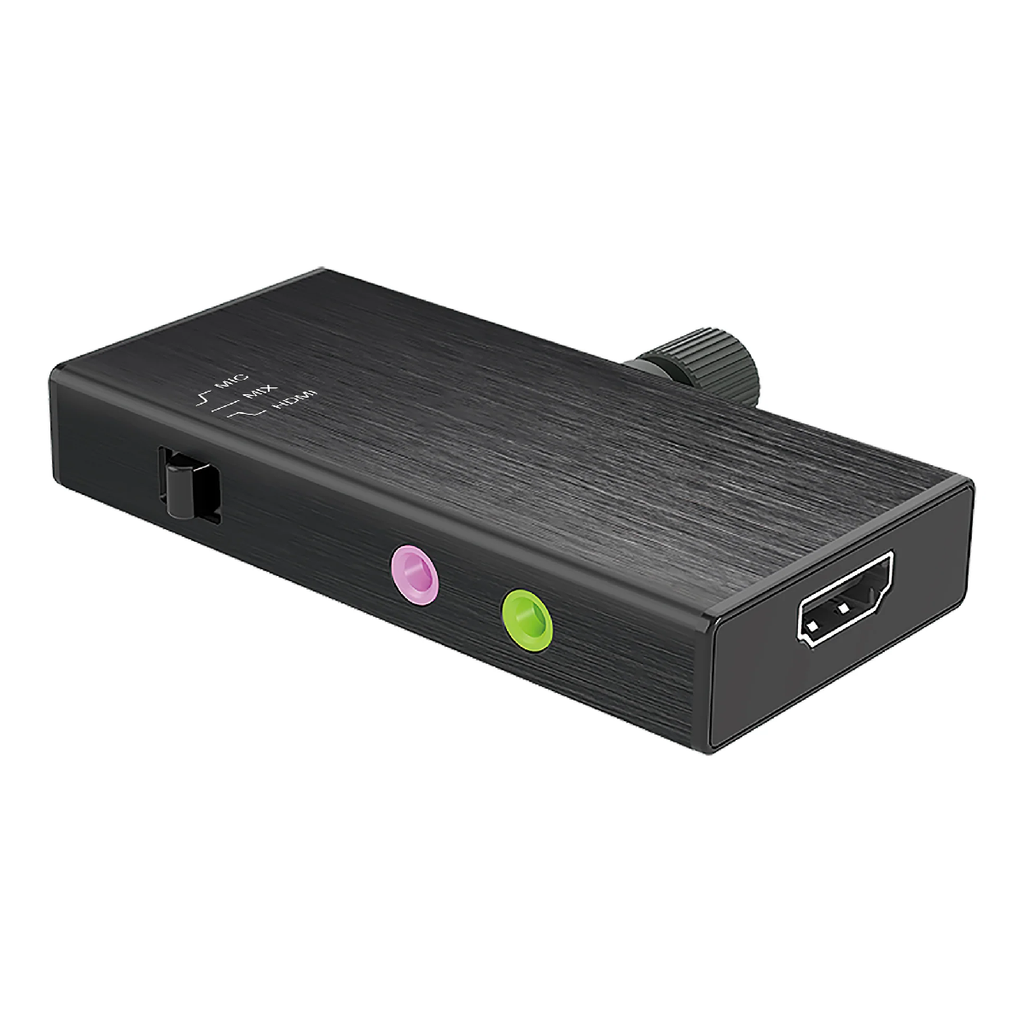

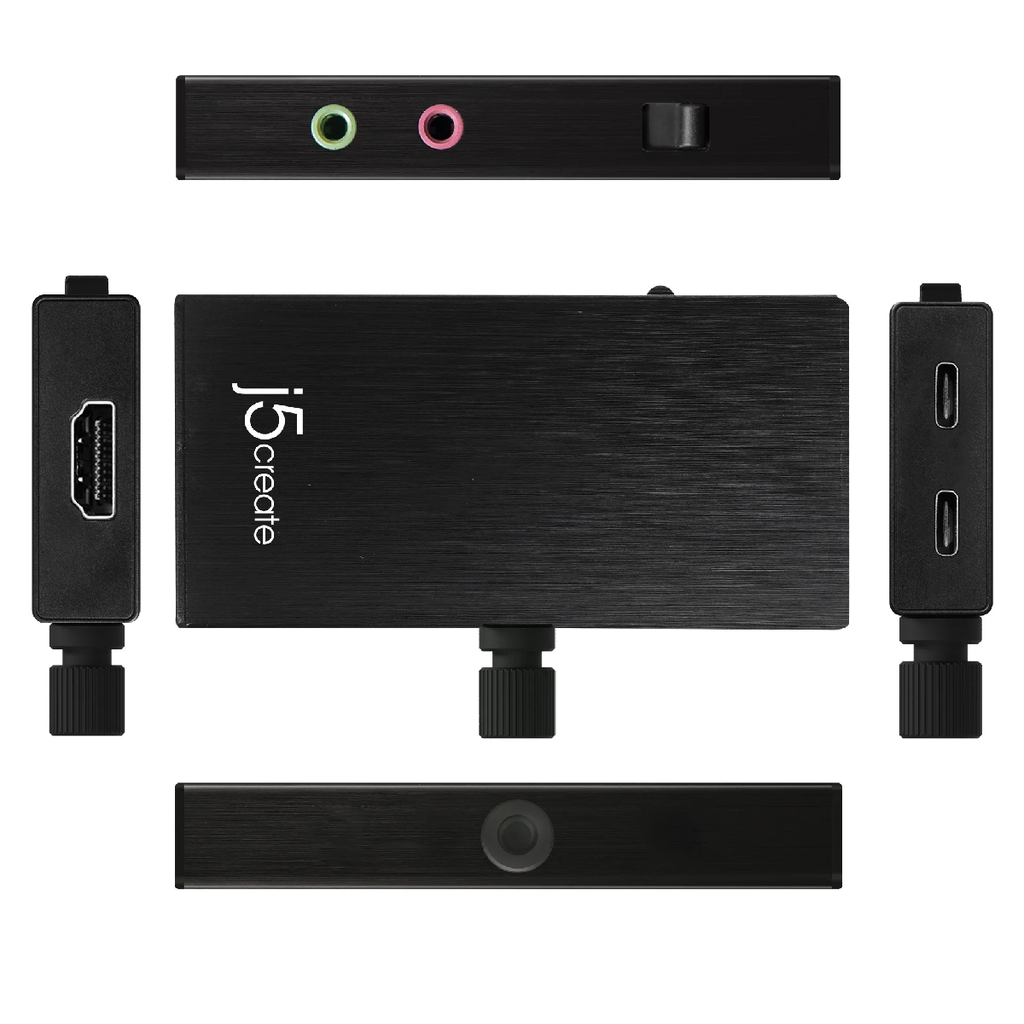

j5 Create JVA02 Live Capture Adapter HDMI™ to USB-C™ with Power Delivery - Black Spec:
| Brand | j5 Create |
| Audio Input | 1 - 3.5mm AUX |
| Audio Output | 1 - 3.5 mm AUX |
| Host Connector | 1 - USB-C® 3.1 Female |
| Ports | 1 - USB-C® 3.1 Gen 1 (Host) 1 - USB-C® PD 3.0 1 - HDMI™ Input 1 - 3.5mm AUX Audio Out 1 - 3.5mm AUX Mic In |
| Power Source | Bus-powered or self-powered (USB-C® PD power) |
| Video Input | 1 - HDMI™ Female |
| Power | Input Current: 3A Input Voltage: 20V Output current: 3A Output voltage: 20V Power Consumption: ≤ 280mA
power delivery: Up to 60W via USB-C® |
| Performance | Audio Channel: 2.1 via HDMI™ Audio Frequency: 48 kHz Compressions: USB™ 3.0: MJPEG/YUV 4:2:2 USB™ 2.0: MJPEG Headset: 2.1 Stereo Max Display Refresh Rate: 60 Hz Microphone: Stereo microphone supported 24-bit sigma-delta ADC Supported Resolution - Input: 1920 x 1080 |
| Physical Spec |
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 32 to 104°F (0 to 40°C)
Product Depth: 0.69 in (17.5 mm)
Product Height: 2.54 in (64.5 mm)
Product Weight: 5.03 oz (142.5g)
Product Width: 5.27 in (133.8 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 14 to 149°F (-10 – 65℃)
|
| Cable Length | 3.3 ft (1m) |
| Model | JVA02 |
| Color | Black |
| Warranty | 12 Month |
Overview For j5 Create JVA02 Live Capture Adapter HDMI™ to USB-C™ with Power Delivery - Black
